Fully automatically dry cutting machine RST-350
Efficient trimming and cutting of steel cables

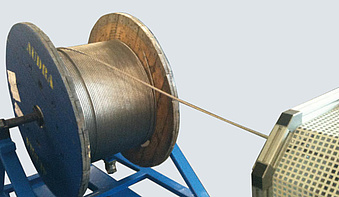

Feeding from the coil offers for the processing of steel cables considerable pricing and consequently economic advantages: the elimination of trim cuts and remnants, major storage and handling advantages, compact coil storage etc..
Your benefits:
Hydraulically controlled gripper feed with integrated feed unit
Automatic control of the coil and gripper feed
Separately controlled walking beam
Integrated disc balancing monitoring for constant circumferential speeds of the cutting disc, even when worn
All feed parameters are adjustable during the cutting process
Compact size and easy operation
Quick changes and easy adjustments of the clamping shells to different workpiece cross sections
Flexible applications thanks to various cut-off lengths
Equipment features:
Cross-sectional size of the parts to be clamped: 10 – 20 mm
Cutting disc sizes up to a maximum diameter of 350 mm
Variable speed control between 63 – 80 m/s
Hydraulically controlled gripper feed with integrated feed unit
Ready to connect to dust extraction and exhaust systems
Optional: Discharge channel for depositing workpieces
Everything from a single source
Thanks to our integration into the PÜTZ GROUP and the resulting synergy effects we are able to offer you not just production and specialist cutting machines but also the appropriate testing technology to test surfaces as well as dimensional accuracy.
