Cutting machines for medium-sized workpieces

Cutting machines for medium-sized workpieces from 7.5 kW to 18.5 kW drive power

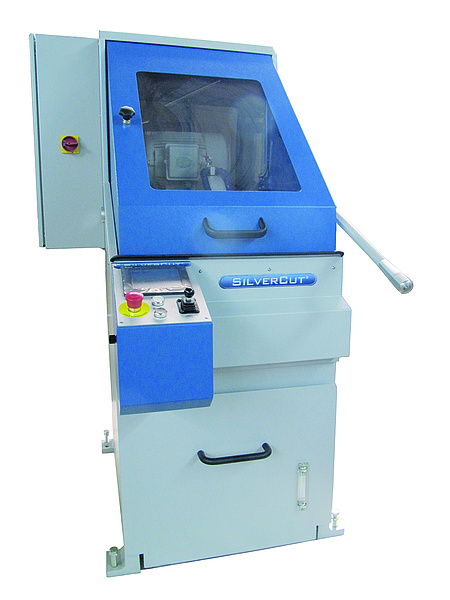

MN-350 A1-A3

SEMI-AUTOMATIC OR AUTOMATIC WET-CUTTING-MACHINE

The Series MN-350 A1-A3 are designed with a very sturdy way.


Model:

  • MN-350 A1 Hand lever machine with servo driven x-axis and manual y-cross axis. For automatically longitudinal and pulse cutting
  • MN-350 A2 Fully automated machine with servo driven x-axis and manual y-cross axis and servo driven z-axis decrease. Automatically longitudinal-, pulsand oscillation cutting
  • MN-350 A3 Additionally with servo driven cross-axis movement (y-axis)


Optional:

  • Stepless speed control of the cutting wheel
  • Laser indicating of cutting line
  • Gage screen for small material
  • Magnetic filtration and belt filter, filter bags
  • Mist filter
  • Variety of clamping units
  • Cutting wheels


Characteristics:

  • Sturdy, welded machine design; completely powder coated
  • Swing hood powder coated
  • Main drive 7,5 kW
  • Max. dimension cutting
  • wheel Ø 350 mm
  • Continuous axis movement by joy stick
  • All programs are storable
  • All servo-axis with automatic speed control
  • Chop cut, longitudinal cut
  • Side opening for long material
  • Pneumatic hand lever for fixing the seesaw position
  • Hand lever with push button to fix the seesaw position for longitudinal cutting

MN-350 M+M2

MANUAL WET-CUTTING-SYSTEM

The machines of the Series MN-350 M are built with a big inside space.


Model:

  • MN-350 M Hand lever machine with longitudinal shift (X-axis)
  • MN-350 M2 Hand lever machine, with manual shifting by hand wheel of Y-axis and X-axis. Chop- and longitudinal cutting possible


Optional:

  • Laser indicating of cutting line
  • Gage screen for small material
  • Magnetic filtration or belt filter
  • Cutting wheel shift by hand wheel
  • Centrifugal separator
  • Variety of clamping units
  • Cutting wheels


Characteristics:

  • Sturdy, welded machine design
  • Machine completely powder coated
  • Main drive 7,5 kW
  • Max. dimension cutting wheel Ø 350 mm
  • Table with longitudinal X-axis movement
  • Chop- and longitudinal cutting possible
  • Side openings for long material

MN-350 S

HAND LEVER MACHINE WITH EXTENDED SERVO X-AXIS

Discs: Ø 350 mm
Power: 7.5 kW


MN-400 A1-A3

SEMI-AUTOMATIC OR AUTOMATIC WET-CUTTING-MACHINE

The Series MN-400 A1-A3 is characterized by a stable construction.


Model:

  • MN-400 A1 Hand-lever machine with cross table (longitudinal: servo-controlled; cross: manual) Automatically longitudinal and puls cutting.
  • MN-400 A2 Full-automatic machine with servo controlled longitudinal and lowering of cutting wheel; manual cross movement. Automatically longitudinal, chop cut; pulse cut and oscillation cut.
  • MN-400 A3 Additional with servo driven cross table movement.


Optional:

  • Stepless speed control of the cutting wheel
  • Laser indicating of the cutting line
  • Gage screen for small parts
  • Belt filter and magnetic filter, filter bags
  • Side movement with scale wheel
  • Mist filter
  • Variety of clamping units
  • Cutting wheels


Characteristics:

  • Sturdy, welded machine design
  • Machine completely powder coated
  • Main drive 10 kW
  • Max. dimension cutting wheel - Ø 400 mm
  • Movement of axes stepless by joystick
  • Storable cutting programs
  • All servo-axes with full-automatic speed control
  • With side openings for long material
  • Pneumatic clamping while longitudinal cut
  • Hand lever with push button, to fix the seesaw position for longitudinal cutting

MN-400 LQN

TWO HYDRAULIC AXES (Y + Z), X-AXIS WITH HAND LEVER

Discs:  Ø 400 mm
Power: 10 kW


MN-400 M1-M2

ONE TO THREE-AXIS MANUAL WET SEPARATOR

Discs:  Ø 400 mm
Power: 10 kW


CN-432 A1-A3

SEMI-AUTOMATIC OR AUTOMATIC WET-CUTTING-MACHINE

The Series CN-432 A1-A3 is able to fulfill extreme cutting tasks owed to its huge motor capacity.


Model:

  • CN-432 A1 Hand-lever machine with cross table (longitudinal: servocontrolled; cross: manual) Automatic longitudinal and pulsed cutting.
  • CN-432 A2 Automatic machine with servo-controlled longitudinal and cutting wheel movement; manual cross movement Automatic: chop cut, pulse cut, oscillation cut.
  • CN-432 A3 Additional with servo-controlled Y axis (cross movement).


Optional:

  • For stepless speed control of the cutting wheel
  • Laser indicating of the cutting line
  • Gage screen for small material
  • Magnetic filter and belt filter, filter bags
  • Different clamps
  • Cutting wheels


Characteristics:

  • Sturdy, welded machine design; completely powder coated
  • Swing hood powder coated
  • Main drive 18,5 kW
  • Max. dimension cutting wheel Ø 432 mm
  • Continuous axis movement by joystick
  • All programs are storable
  • All servo-axis with automatic speed control
  • With side openings for long material
  • Mobile water tank with integrated screen for coarse dirt, inside or at side of the machine
  • Hand lever with push button, to fix the seesaw position for longitudinal cutting
  • Cutting longitudinal 625 mm
  • With option magnetic filter - water tank left
