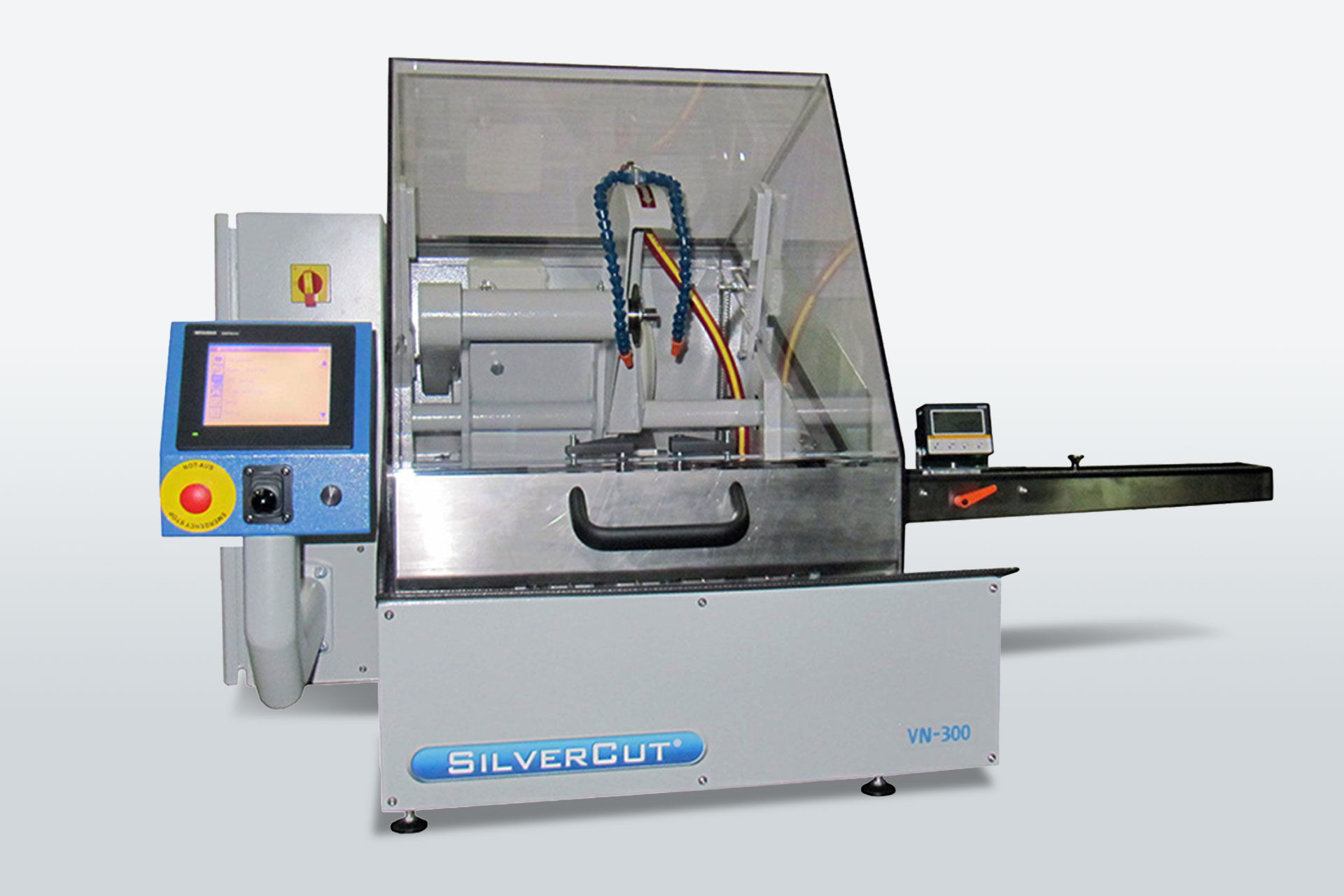

Fully automatic cutting system with manual workpiece feed and removal - series VN-300 Z

The fully automated cutting system Series VN-300Z with manual workpiece infeed and outlet is suitable for the trimming of:

• Hard metal bars with a length of up to 300 mm and a diameter or 30 mm
• Pipes and other bar materials in wet cutting mode

Characteristics:

• Digital measuring unit for stageless length measurement

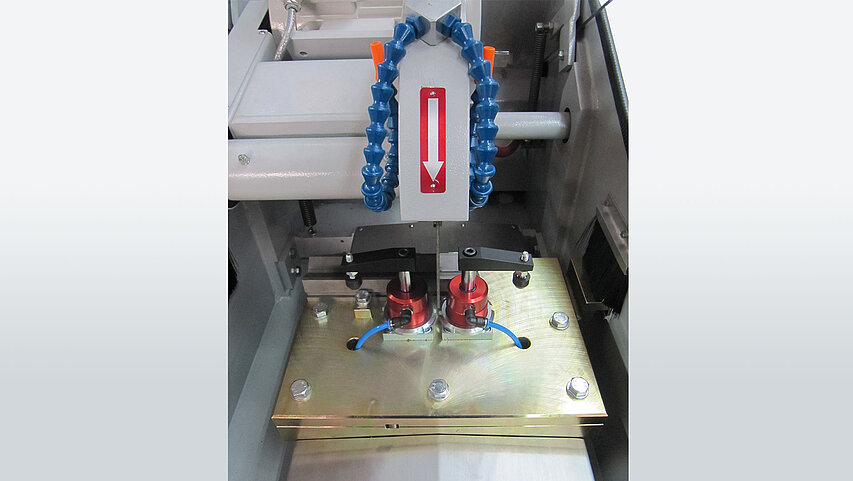

• Clamping device with two parallel vices

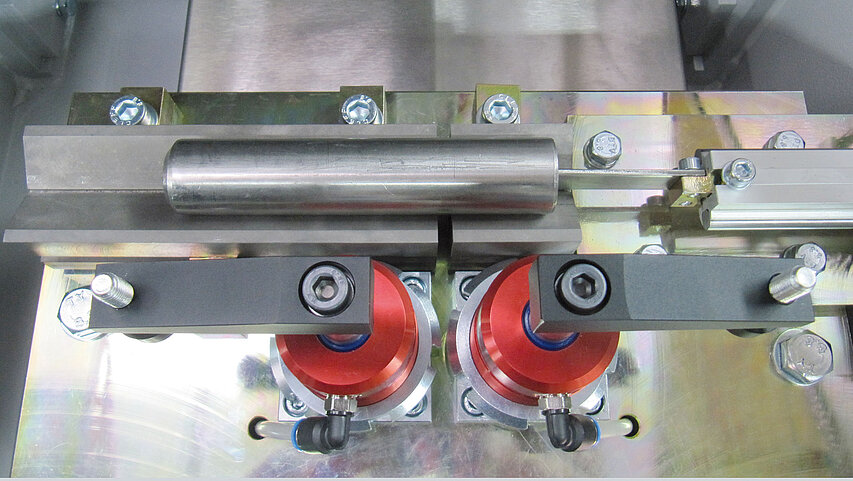

• Prism clamping (1) with 2 pneumatic swing clamps and digital workpiece arrester
• Adjustable 3-zone cutting area

Optional:

• Magnetic filter, or belt magnetic filter unit
• Laser display of the cutting line,
• Infeed and outlet and removal units
• Openings for longer parts
• Base cabinet
• Stageless speed regulation

Fully automatic cutting system with manual workpiece infeed and outlet – series VN-300Z
