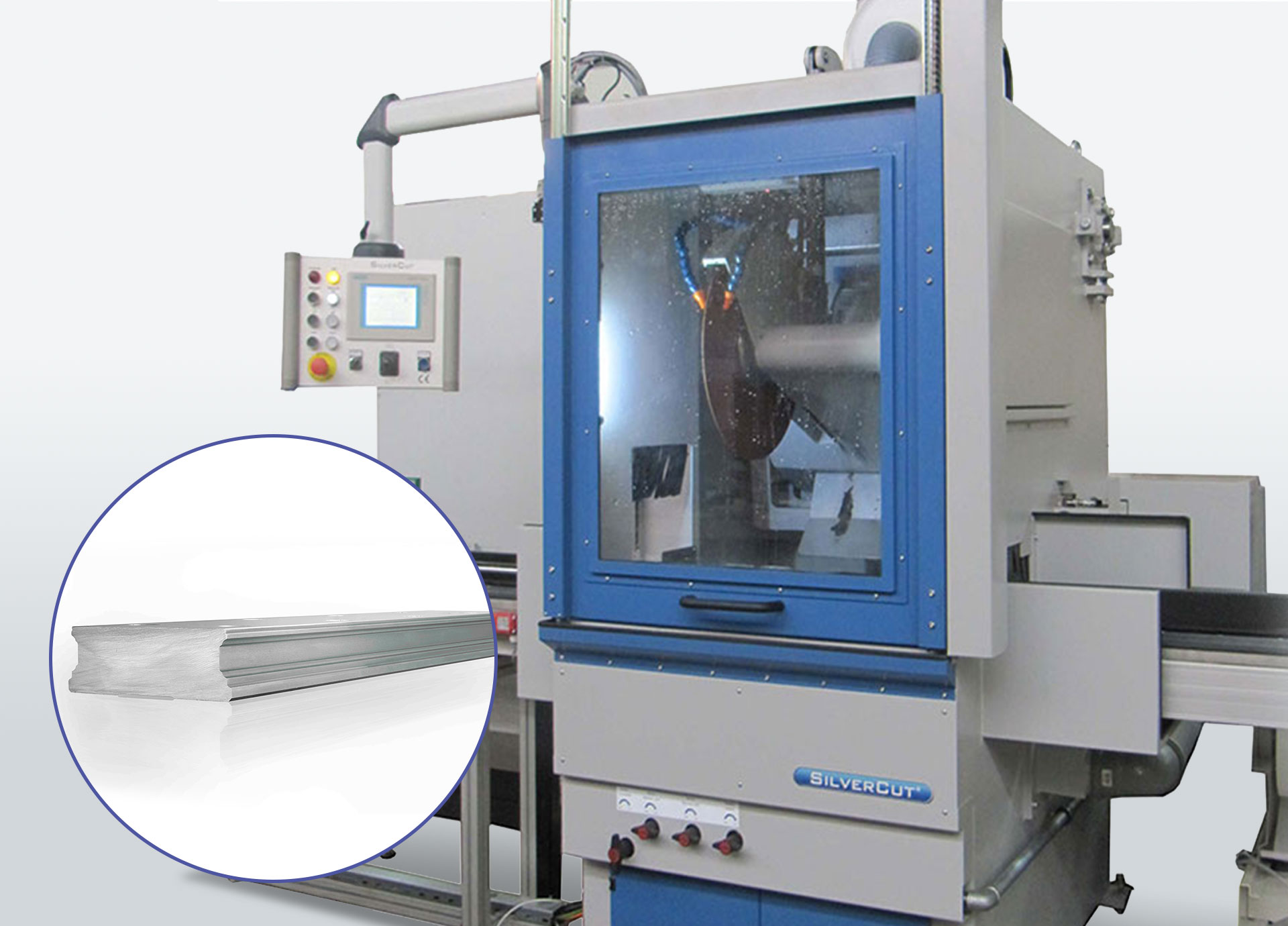

Wet cut-off machine with fixed table TNA-500

The stable TNA-500 series cut-off machines are characterised by their high cutting accuracy. All machines are supplied as a powder-coated welded construction. To be used for Corundum-, Rubber-, Diamond- or CBn-cutting wheels.

• Main drive power: 22 kW
• Cuttings discs: max. Ø 500 mm

Model:

TNA-500 Wet cut-off machine with fixed table, max. cutting disc Ø 500 mm

Characteristics:

• Stepless speed control
• Automatic cut-off wheel balancing
• Hydraulic workpiece clamping (2-hand safety control) in manual mode
• Max. cut-off wheel Ø 500
• Positioning of the cut-off wheel using hydraulic measuring cylinders
• Pendulum cut option
• Thread cut function
• On the machine side Circulating cooling system with V=170 l / 100 l/min.
• Swivel control panel with touch screen control
• 99 cutting programs can be stored

Optional:

• Magnetic filter (100 l/min) for filtering out magnetic dusts
• Band filter (RWS 120–400 V / 50 Hz) for filtering out non-ferritic dusts

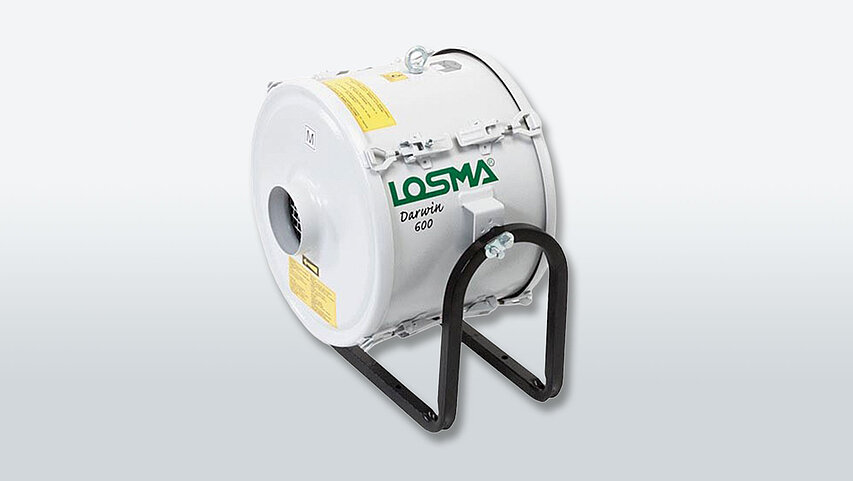

• Centrifugal separator for suction of of the coolant mist from the machine (mounting on machine roof)

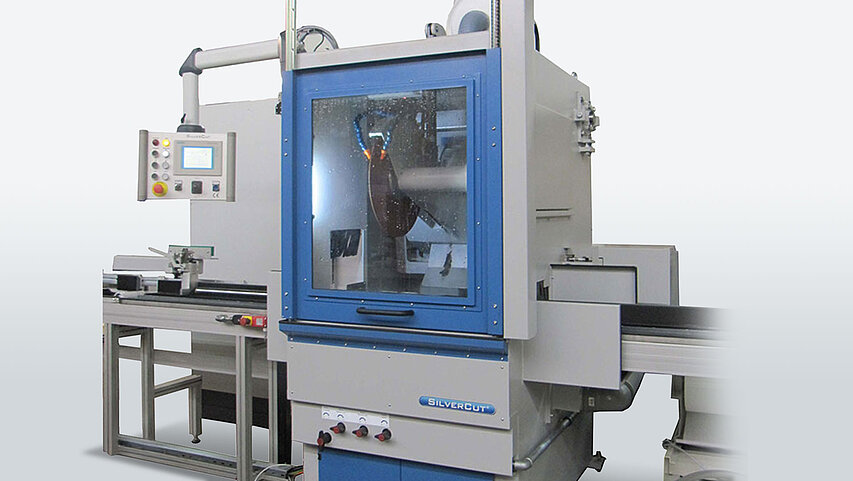

Wet cut-off machine – series TNA-500
