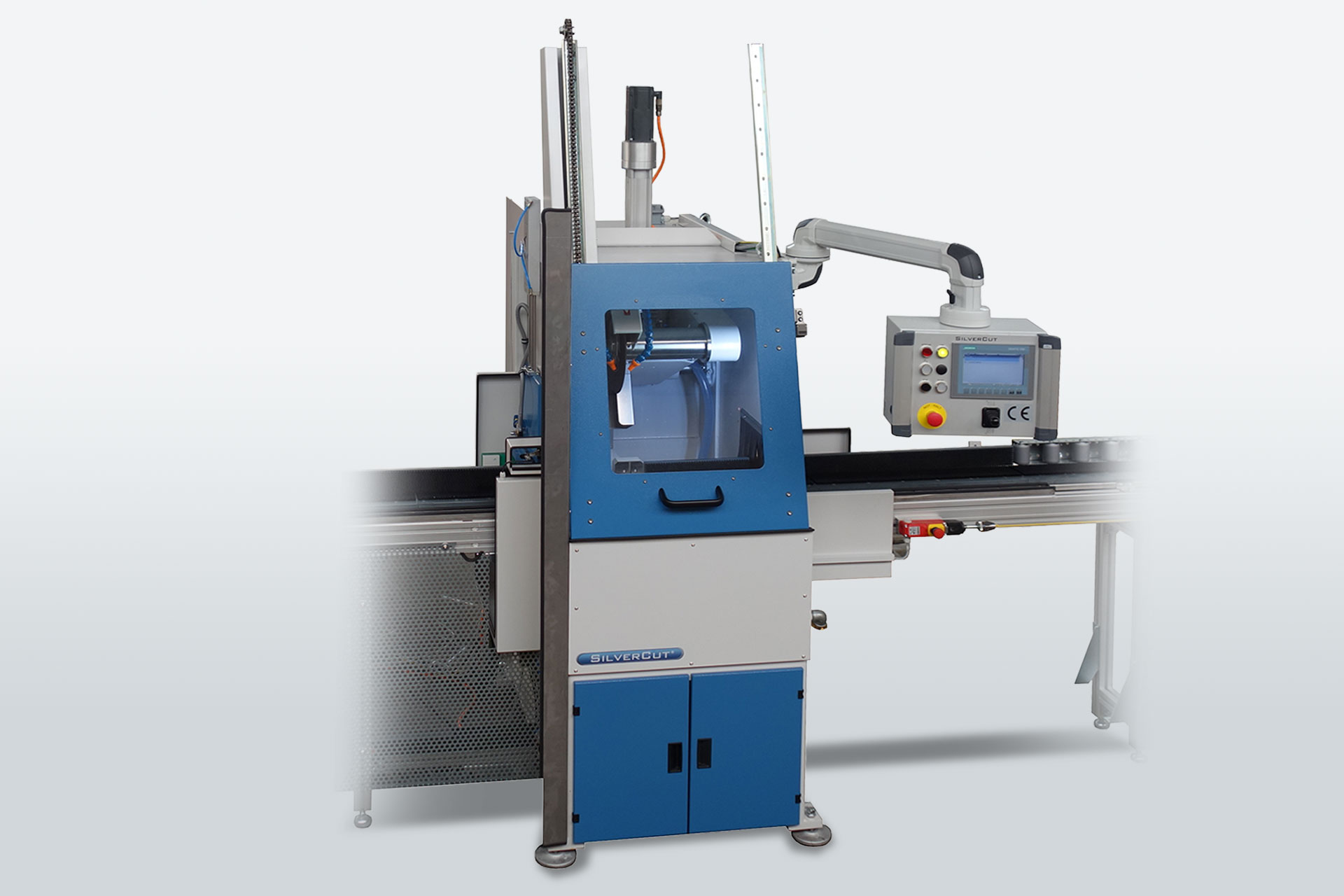

Wet and dry cutting machine – series RS-350N Servo

The RS-350N Servo cutting machine is suitable for fully automatic cutting of guide rails, spindles, pipes and other bar materials using the wet cutting process.

• Main drive power: 7.5 kW
• Cuttings discs: Ø-350 mm

Characteristics:

• Pneumatic, pressure-compensating material clamping

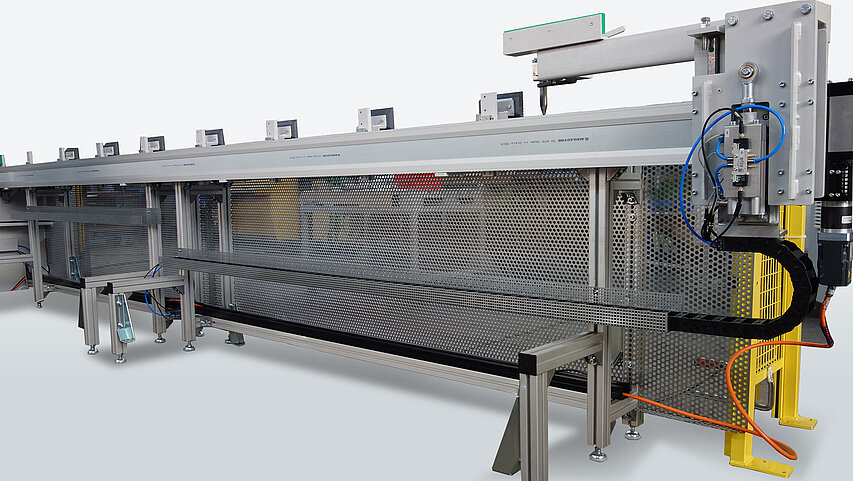

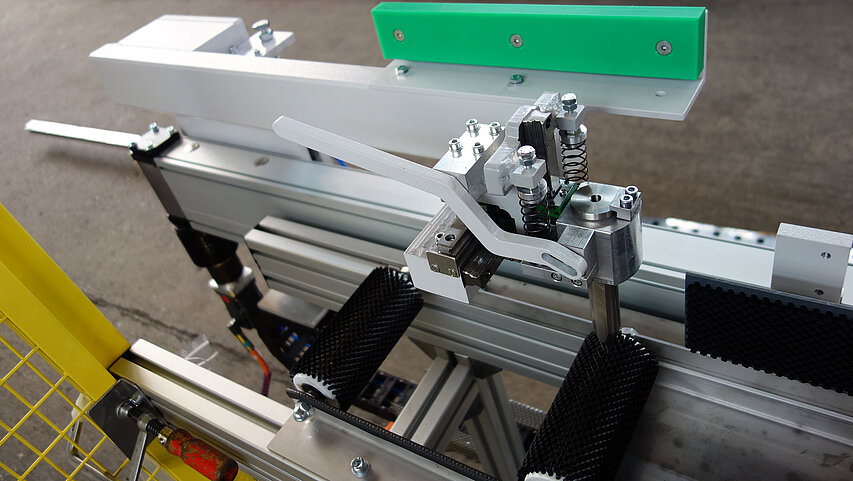

• Automated workpiece feed
• Thread start function
• Clamping jaws with additional cooling water holes
• 99 cutting programs can be stored
• Pulse cutting with adjustable frequency
• Brush support on the right and left of the clamping device for scratch-free movements

Optional:

• Inlets and outlets in customer-specified lengths and orientations
• Loading/buffer systems
• Inclined bed loaders with separation,
• Centrifugal separators for extracting coolant mist from the machine (mounted on the machine roof)
• Magnetic filter or belt magnetic filter unit
